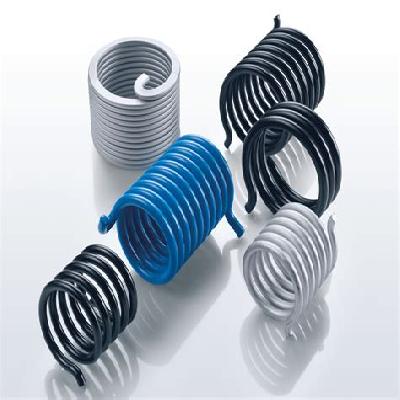

Torsion springs are a type of elastic component that stores energy when twisted or flexed, and releases it when untwisted or returned to its original shape. They are commonly used in various applications where rotational motion is required, such as in clock mechanisms, hinges, and other mechanical devices.
Where To Use Torsion Springs
Torsion springs are widely used in various industries, including clockmaking, automotive, aerospace, and manufacturing. They can be found in applications such as:
Automotive suspension systems
Timing devices and mechanisms
Clutch and brake systems
Power transmission systems
Mechanical actuators and valves
Key Features Of Torsion Springs
High torsional stiffness and resistance to twisting forces
Low deflection under load, ensuring precise rotational motion
Long lifespan due to minimal wear and tear on the spring material
Compact design, making them ideal for space-constrained applications
Fault-tolerant operation, reducing downtime and maintenance needs
How To Use Torsion Springs
Select the appropriate torsion spring for your specific application based on the required rotational motion, load capacity, and operating temperature range.
Install the torsion spring according to the manufacturer's instructions, ensuring proper alignment and secure fixation.
Maintain the torsion spring by regularly inspecting its condition, replacing worn-out or damaged springs as needed.
How Torsion Springs Is Manufactured
The manufacturing process for torsion springs involves several stages, including material selection and preparation, wire forming, spring coiling, and quality control checks.
Technical Specification Of Torsion Springs
Material:
Carbon Steel
Spring Type:
Coiled Torsion Spring
Wire Diameter:
3.5 mm
Spring Free Length:
50 mm
Operating Temperature Range:
-20°C to 120°C
Load Capacity:
10 Nm
The technical specifications listed above provide a detailed overview of the torsion spring's design and performance characteristics. The material selection, spring type, wire diameter, and other parameters are carefully chosen to ensure optimal functionality and durability in various applications.
Description Of Torsion Springs
Torsion springs are designed to store energy when twisted or flexed, and release it when untwisted or returned to its original shape. They are commonly used in applications where rotational motion is required, such as clock mechanisms, hinges, and other mechanical devices.
Related Products & Synonyms Of Torsion Springs
Torsion springs are related to other types of springs and elastic components, such as:
