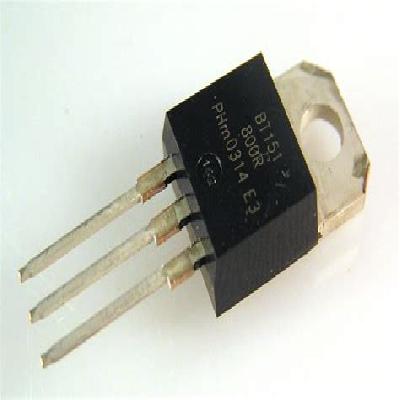

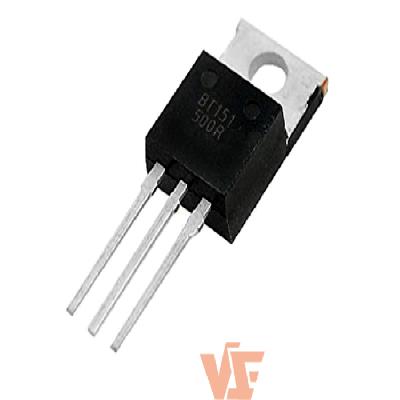

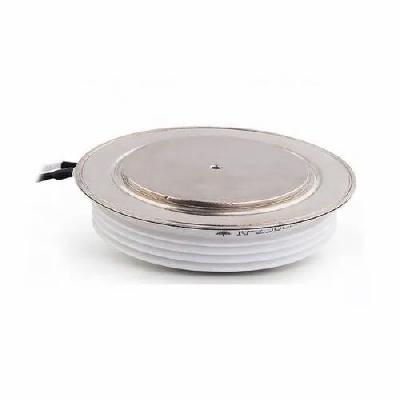

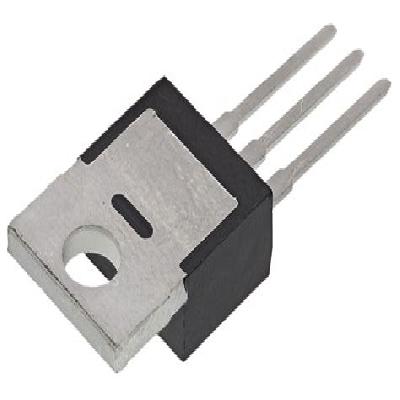

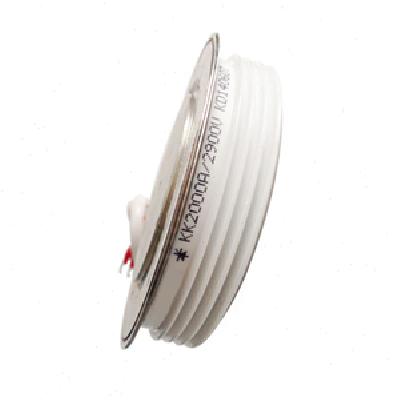

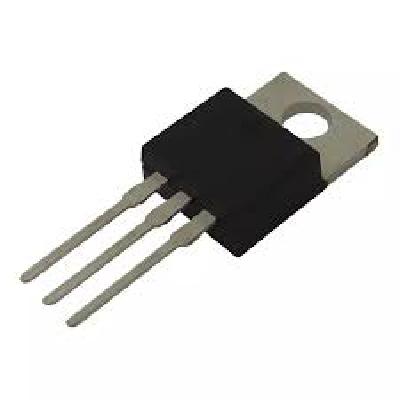

A thyristor is a type of semiconductor device that acts as a control switch for electrical current. It can be thought of as an electronically controlled mechanical switch that can conduct or interrupt the flow of electric current. Thyristors are used in various applications, including power supplies, motor controls, and lighting systems.
Where To Use Thyristors
Power supplies and motor controls
Lighting systems and electrical panels
Industrial automation and robotics
Renewable energy systems and solar power inverters
Key Features Of Thyristors
High current handling capacity
Low on-state voltage drop
Fast switching times
High surge current capability
How To Use Thyristors
Apply a gate signal to trigger the thyristor
Connect the anode and cathode terminals to form a closed circuit
The thyristor will conduct when the voltage across it exceeds a certain threshold
How Thyristors Is Manufactured
Thyristors are manufactured using a combination of semiconductor materials and advanced manufacturing techniques. The process involves creating a base material, such as silicon or germanium, and then doping it with impurities to create the required electrical properties. The thyristor is then formed by diffusing regions into the material to create the p-n junctions.
Technical Specification Of Thyristors
Voltage Rating:
600V
Current Rating:
10A
Gate Trigger Current:
1mA
Operating Temperature:
-40°C to +125°C
Weight:
20g
The technical specification of thyristors includes voltage rating, current rating, gate trigger current, operating temperature, and weight. These specifications are critical in determining the suitability of a thyristor for a particular application. The voltage rating determines the maximum voltage that the thyristor can handle, while the current rating determines the maximum current that it can conduct. The gate trigger current is the minimum current required to trigger the thyristor, and the operating temperature range specifies the temperature at which the thyristor can operate safely. Finally, the weight of the thyristor is an important consideration in compact designs.
Description Of Thyristors
Thyristors are semiconductor devices that can control the flow of electrical current in a circuit. They consist of three layers: an n-type layer, a p-type layer, and a metal contact layer. When a gate signal is applied to the thyristor, it allows current to flow between the anode and cathode terminals.
Related Products & Synonyms Of Thyristors

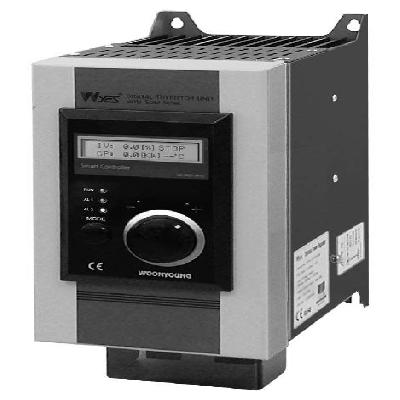

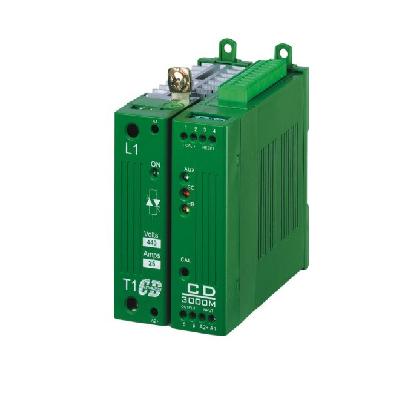

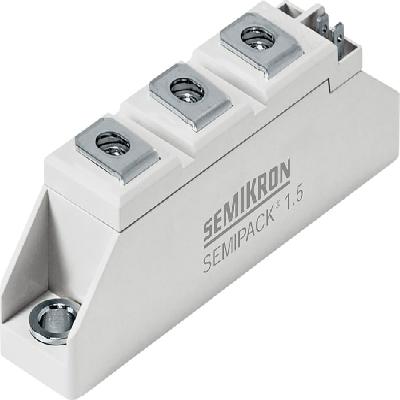

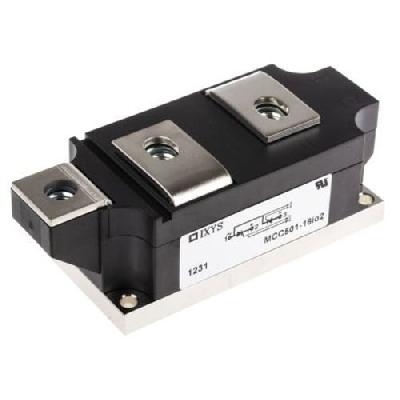

Some related products of thyristors include IGBT modules, power modules, thyristor modules, thyristor power regulators, phase control thyristors, high-power thyristors, inverter thyristors, and fast-switching thyristors. These devices are used in various applications, including power supplies, motor controls, and lighting systems.
