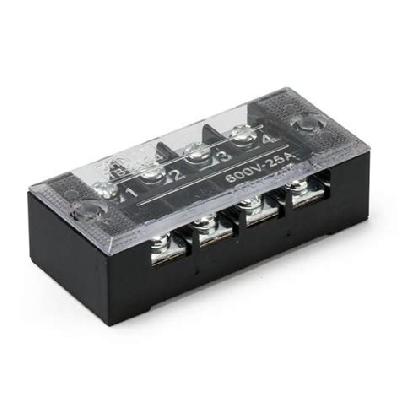

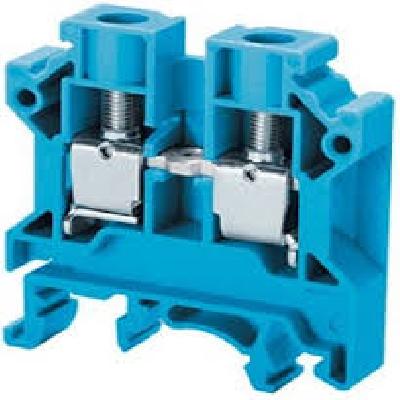

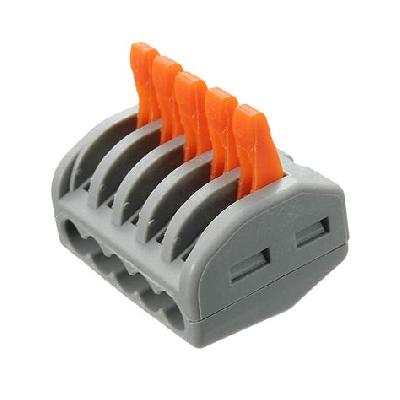

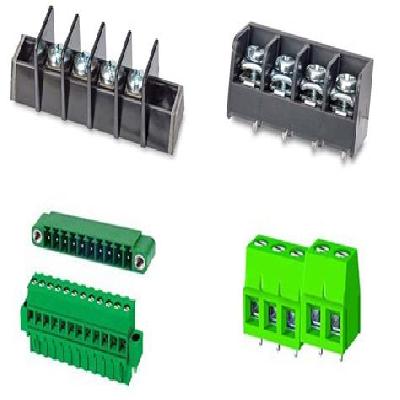

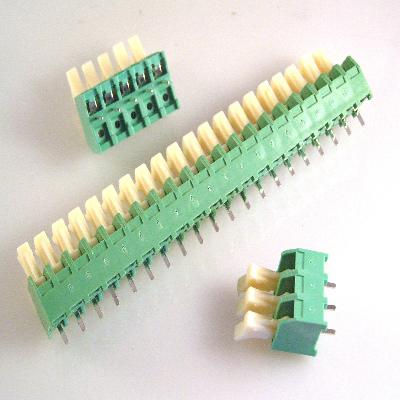

A terminal block connector is a type of electrical connector used to connect and terminate wires in industrial control panels, switchgear, and other applications.
Where To Use Terminal Block Connector
Terminal block connectors are commonly used in industrial control panels, switchgear, and other applications where multiple wires need to be connected and terminated.
Key Features Of Terminal Block Connector
Easy to install and terminate
High current carrying capacity
Durable and resistant to environmental factors
Available in various configurations and sizes
How To Use Terminal Block Connector
Identify the correct terminal block connector for your application
Cut and strip the wires to the required length
Insert the wires into the terminal block connector
Tighten the screws or nuts to secure the wires in place
How Terminal Block Connector Is Manufactured
Terminal block connectors are manufactured using high-quality materials and advanced manufacturing processes to ensure durability and reliability.
Technical Specification Of Terminal Block Connector
Current Range:
10-30A
Voltage:
250V
Number of Poles:
2-10
Pitch:
5mm
Mounting:
Panel Mount
The technical specification of the terminal block connector includes details such as current range, voltage, number of poles, pitch, and mounting type. The current range is from 10-30A, which makes it suitable for a wide range of applications. The voltage rating is 250V, making it compatible with most industrial control panels and switchgear. The number of poles can be adjusted to suit specific requirements, ranging from 2-10 poles. The pitch of the connector is 5mm, allowing for easy connection and termination of wires. Finally, the mounting type is panel mount, making it easy to install in industrial control panels.
Description Of Terminal Block Connector
A terminal block connector is a type of electrical connector used to connect and terminate wires in industrial control panels, switchgear, and other applications.

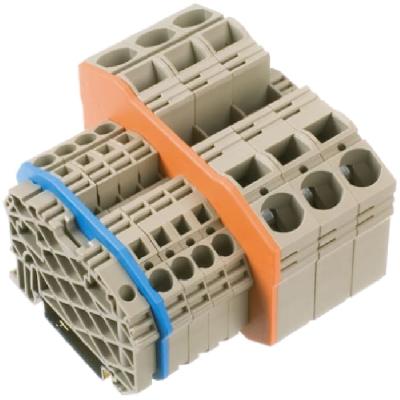

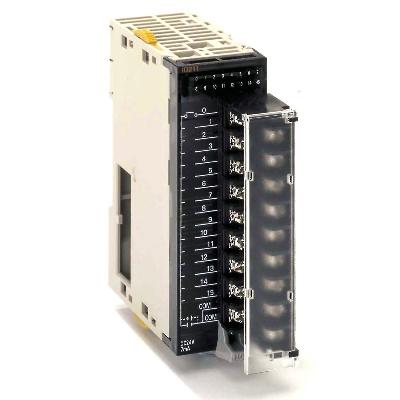

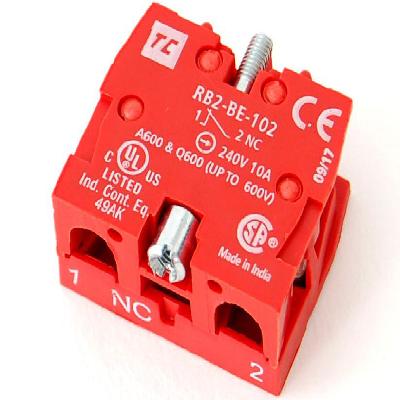

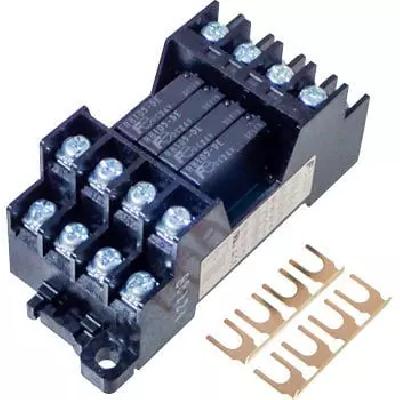

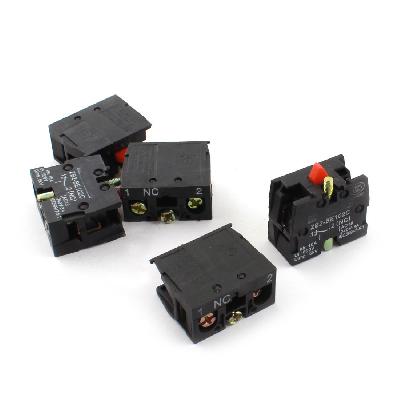

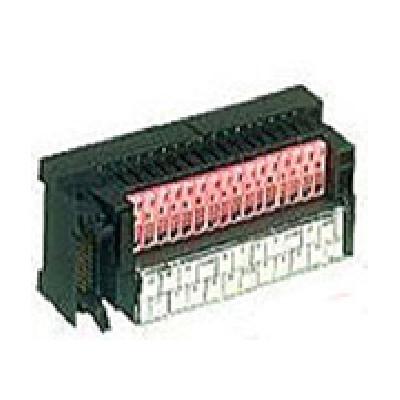

Related Products & Synonyms Of Terminal Block Connector
Some related products to terminal block connectors include:
