Pipe nipples are a type of pipe fitting used to connect two pipes together, typically in piping systems for industrial applications. They are essentially short sections of pipe with threads on both ends, allowing them to be screwed into the pipes they connect.
Where To Use Pipe Nipples
Pipe nipples are commonly used in industrial piping systems, such as those found in power plants, chemical processing facilities, and oil refineries.
They can also be used in plumbing applications, including water supply systems and drainage pipes.
Pipe nipples are often used to connect pipes of different sizes or materials together, allowing for greater flexibility in piping design.
Key Features Of Pipe Nipples
Threaded ends for secure connection to pipes.
Available in various materials, including steel, copper, and plastic.
Varying sizes and lengths to accommodate different piping systems.
Can be used with different types of pipe connections, such as threaded or welded.
How To Use Pipe Nipples
Choose the correct size and material of pipe nipple for your application.
Clean the threads on both ends of the pipe nipple and the pipes it will connect.
Screw the pipe nipple into place, ensuring a secure connection.
Tighten the pipe nipple by hand or with a wrench to prevent damage to the threads.
How Pipe Nipples Is Manufactured
Pipe nipples are typically manufactured using a combination of machining and threading processes. The raw material, usually steel or copper, is first cut to the required length. The threads on both ends are then created through a series of cutting and turning operations.
Technical Specification Of Pipe Nipples
Material:
Steel (ASTM A106), Copper (ASTM B42)
Size:
1/2" to 12"
Length:
3" to 10"
Pressure Rating:
Class 200 to Class 2500 psi
Thread Type:
NPT (National Pipe Taper)
The technical specifications of pipe nipples provide a clear overview of the material, size, length, pressure rating, and thread type available for different applications. The material used is typically steel or copper, which offers excellent strength and corrosion resistance. Pipe nipples are available in various sizes, ranging from 1/2" to 12", and lengths up to 10". The pressure rating varies between Class 200 to Class 2500 psi, ensuring that the pipe nipple can withstand high pressures without bursting. The thread type is NPT (National Pipe Taper), which allows for a secure connection to pipes.
Description Of Pipe Nipples
Pipe nipples are an essential component in piping systems, offering a secure and reliable connection between pipes. They are available in various materials, sizes, and lengths to accommodate different applications and requirements.
Related Products & Synonyms Of Pipe Nipples

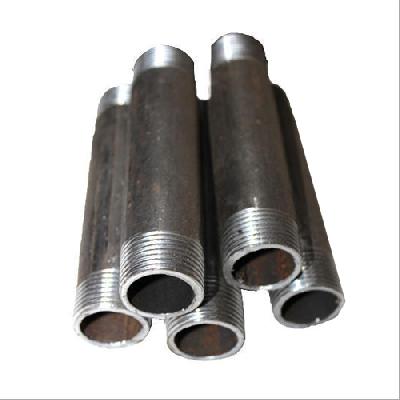

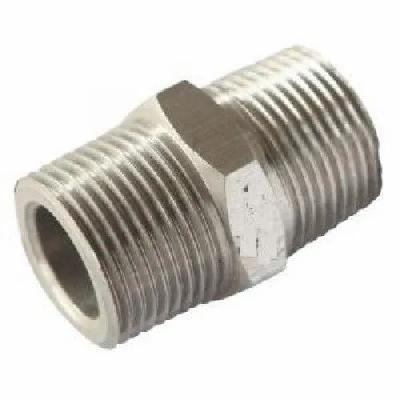

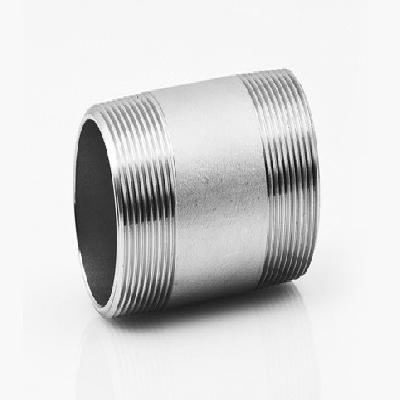

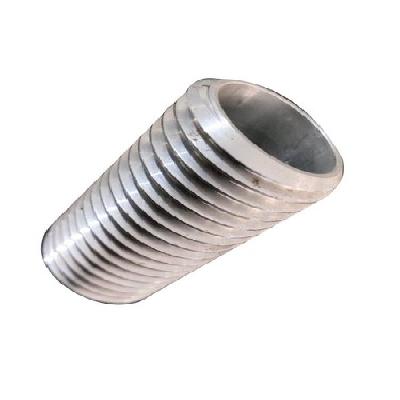

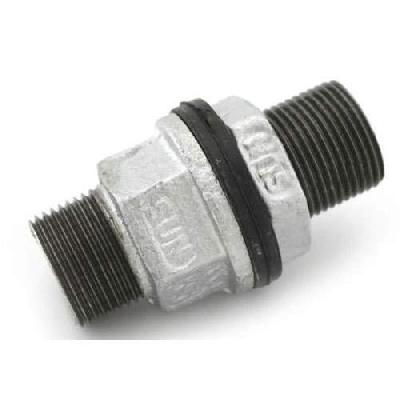

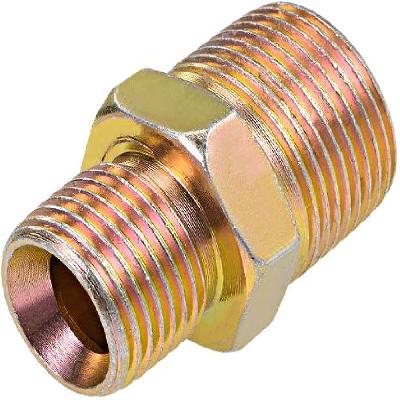

Some related products to pipe nipples include Galvanized Iron Pipe Nipples, Brass Nipples, Cp Extension Nipples, Hex Nipples, Hydraulic Hex Nipple, Hose Nipples, Barrel Nipple, Welding Nipple, Cast Iron Nipple, Copper Pipe Nipple, Swage Nipples, Gi Hex Nipple, Carbon Steel Nipple, Socket Nipple, Alloy Steel Nipple, Seating Nipple, Straight Nipple, Copper Nickel Nipple, Extension Nipple, MS Pipe Nipple, GI Barrel Nipple, Brass RO Nipple, Reducer Hex Nipple, GI Tank Nipple, Buttweld Nipple, CI Hex Nipple, Aluminium Nipple, and Alloy 20 Nipple.
