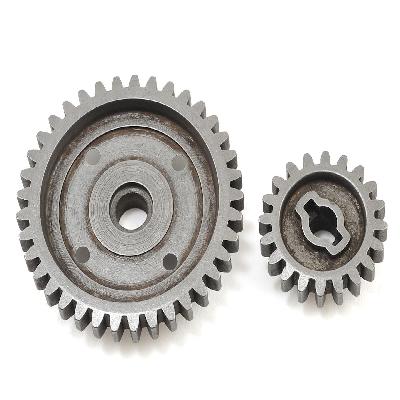

A pinion is a type of gear that is typically used in conjunction with other gears to transmit motion or power in a mechanical system. It is usually small and has a precise number of teeth, which allows it to engage with other gears to achieve specific speed ratios or torque requirements.
Where To Use Pinion
Pinions are commonly used in a variety of applications, including:
Automotive gearboxes and transmissions
Mechanical watchmaking and clockwork mechanisms
Robotics and automation systems
Aircraft and aerospace industry
Key Features Of Pinion
High precision and accuracy in tooth profile and spacing
Ability to transmit high torque and power
Compact design and lightweight construction
Low noise and vibration levels during operation
How To Use Pinion
Ensure proper installation and alignment of the pinion with other gears
Apply correct lubrication to reduce friction and wear
Maintain regular inspection and maintenance schedules to prevent damage or malfunction
Familiarize yourself with safety protocols and precautions when handling or operating machinery that uses pinions
How Pinion Is Manufactured
The manufacturing process for pinions typically involves several stages:
Machining and cutting of the raw material to achieve the desired shape and size
Heat treatment and hardening to enhance wear resistance and durability
Grinding and polishing to attain precise tooth profile and surface finish
Axial inspection and testing to ensure accuracy and quality standards
Technical Specification Of Pinion
Material:
Steel (high-carbon or alloy)
Diameter:
40-100 mm
Surface Finish:
Ground and polished to Ra 0.8 ?m
Number of Teeth:
15-60 teeth
The technical specifications of a pinion are crucial in determining its performance and suitability for specific applications. The material, diameter, surface finish, and number of teeth all play significant roles in achieving the desired speed ratio, torque, and precision. A well-designed and manufactured pinion can provide reliable service in various industries, from automotive to aerospace.
Description Of Pinion
A pinion is a type of gear that plays a vital role in mechanical systems, particularly in power transmission and speed reduction applications.
Related Products & Synonyms Of Pinion
Some related products and synonyms of pinions include:
Rack Pinions: used in rack-and-pinion systems for linear motion

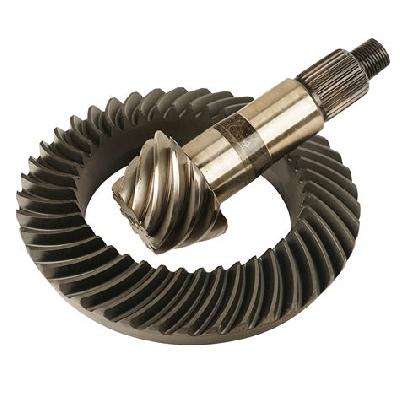

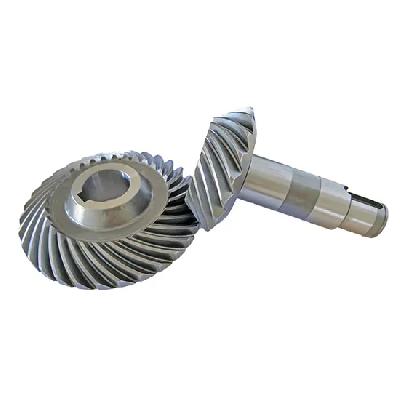

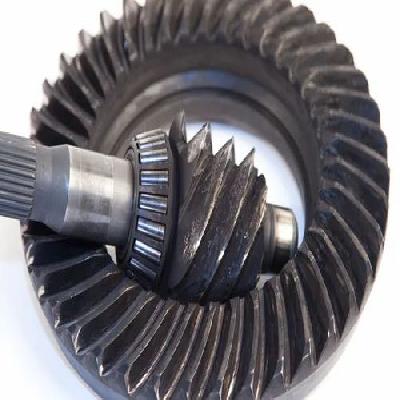

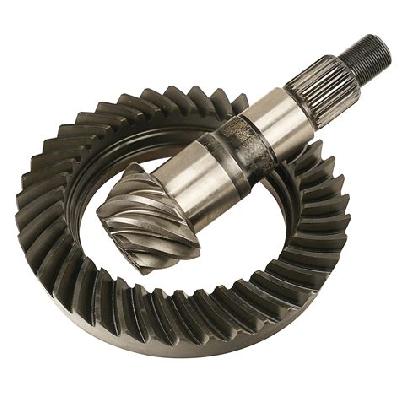

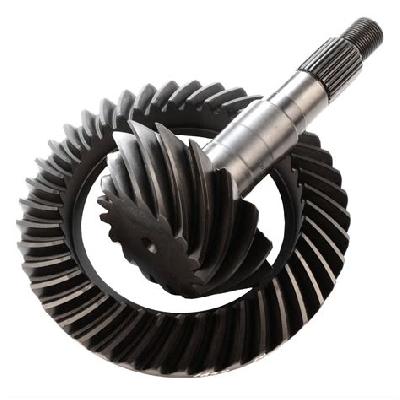

Crown Wheel: a type of gear that engages with the pinion to transmit power and speed

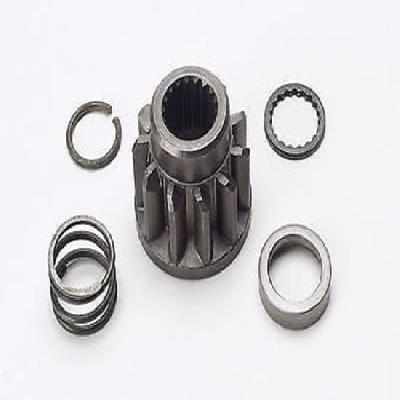

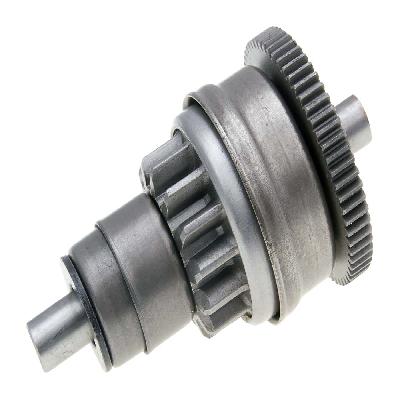

Starter Pinion: used in automotive transmissions to engage with the starter motor
