An Ohm meter, also known as an ohmmeter or multimeter, is a measuring instrument used to measure electrical resistance. It is commonly used in various industries such as electronics, automotive, and manufacturing to troubleshoot and test electrical circuits.
Where To Use Ohm Meter
Ohm meters are widely used in various settings, including:
Electronics laboratories
Automotive repair shops
Manufacturing facilities
Field service technicians
Key Features Of Ohm Meter
High accuracy and precision measurements
Durable and rugged design for industrial use
Multi-functionality, including measurement of voltage, current, and resistance
Automatic range selection and overload protection
How To Use Ohm Meter
Set the ohmmeter to the correct range and function
Connect the test leads to the circuit or component being measured
Take multiple readings and record the results
Analyze the data and make adjustments as needed
How Ohm Meter Is Manufactured
The manufacturing process for an ohm meter involves several stages, including:
Design and prototyping
Sourcing of components and materials
PCB assembly and testing
Final assembly, quality control, and packaging
Technical Specification Of Ohm Meter
Measurement Range:
200 m? to 20 M?
Test Voltage:
DC up to 200 V, AC up to 250 V
Test Current:
DC up to 10 A, AC up to 20 A
Display Type:
LCD display with backlight
Temperature Range:
-20°C to +50°C
Power Source:
2 x 9V batteries or external power adapter
The technical specification of an ohm meter is critical in determining its accuracy and reliability. The measurement range, test voltage, test current, display type, temperature range, and power source are all important factors to consider when selecting an ohm meter for industrial use.
Description Of Ohm Meter
An ohm meter is a versatile and essential tool for electrical testing and measurement. Its compact design, high accuracy, and rugged construction make it ideal for use in various industrial settings.
Related Products & Synonyms Of Ohm Meter
Some related products and synonyms of an ohm meter include:

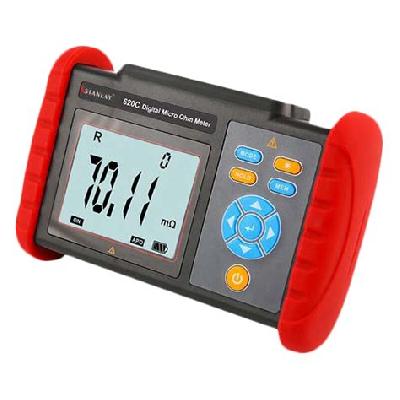

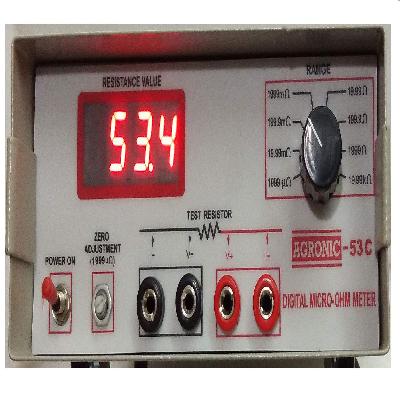

Micro Ohm Meter: A high-precision ohmmeter for measuring very low resistances
Megohmmeter: A specialized ohmmeter for measuring extremely high resistances (1 M? to 100 G?)
Kelvin Bridges: A device used to measure the resistance of a sample at cryogenic temperatures

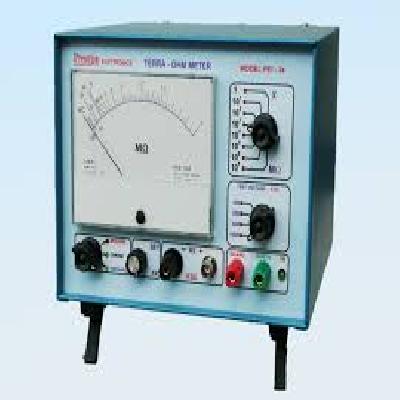

Million Megohm Meter: A high-precision ohmmeter for measuring very high resistances (10 M? to 1 T?)
Digital Ohmmeter: An electronic ohmmeter that uses digital display and advanced measurement techniques

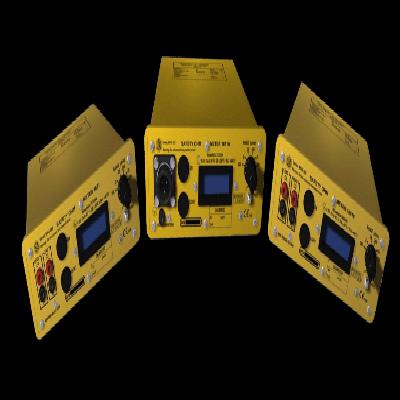

Safety Ohmmeter: A specialized ohmmeter designed with safety features for use in hazardous environments

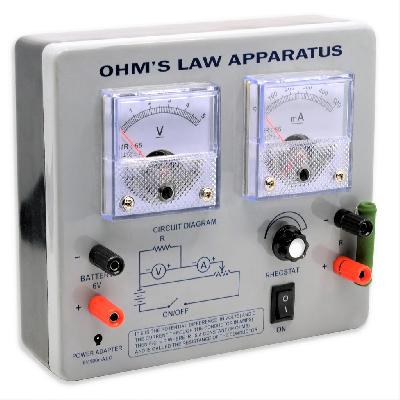

Ohms Law Apparatus: A device used to demonstrate the principles of Ohm's law and electrical resistance
