Electric coils are a type of electrical component that consists of a coil of wire wrapped around a core material, typically made of magnetic or non-magnetic materials. They are designed to induce electromagnetic fields and can be used in various applications such as power supplies, motor controls, and signal processing.
Where To Use Electric Coils
Electric coils are commonly used in industrial and commercial settings, including power plants, factories, and data centers. They can also be found in residential buildings, particularly in homes with advanced electrical systems.
Key Features Of Electric Coils
High inductance and low resistance for efficient energy transfer
Robust construction to withstand high currents and temperatures
Compact design for easy installation and reduced space requirements
Wide range of voltage and current ratings available
Long lifespan with minimal maintenance required
How To Use Electric Coils
Select the correct coil type and size based on application requirements
Mount the coil securely to prevent vibration and movement
Connect the coil to a power source and control circuitry as needed
Monitor coil performance and adjust settings as required for optimal operation
Replace or repair coils as necessary to maintain system efficiency and safety
How Electric Coils Is Manufactured
Electric coils are manufactured using a variety of materials and processes, including winding, insulation, and testing. The core material is typically made from ferromagnetic or non-magnetic alloys, while the wire is insulated with enamel or varnish to ensure reliable performance.
Technical Specification Of Electric Coils
Coil Voltage (V)
10-500
Inductance Range (?H)
100-10,000
Wire Gauge (AWG)
14-2
Mounting Type
Screw, Clip, or Adhesive
Temperature Ratings (°C)
-40 to +150
The technical specifications of electric coils play a crucial role in determining their suitability for specific applications. Coil voltage, inductance range, wire gauge, mounting type, and temperature ratings are all critical factors that influence the performance and reliability of the coil. When selecting an electric coil, it is essential to consider these specifications carefully to ensure optimal operation and efficiency.
Description Of Electric Coils
Electric coils are designed to provide efficient and reliable energy transfer in a wide range of applications, from power supplies to motor controls. With their high inductance and low resistance, they can handle high currents and temperatures while minimizing energy losses. The compact design of electric coils makes them ideal for installation in confined spaces, ensuring flexibility and convenience.
Related Products & Synonyms Of Electric Coils

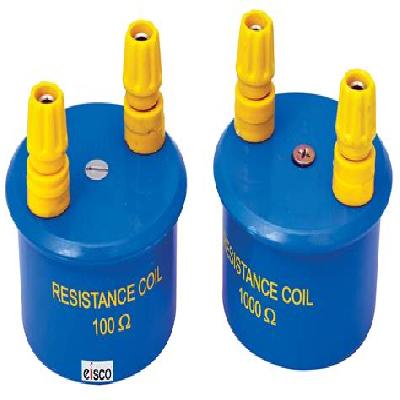

Electric coils are related to other electrical components, including tripping coils, electronic coils, spare coils, induction coils, inductor coils, resistance coils, choke coils, earthing coils, power choke coils, air core coils, contactor coils, Tesla coils, power coils, induction hardening coils, linearity coils, meter coils, and edge-wound coils. Synonyms for electric coils include electromagnetic coils, electrical coils, magnetic coils, inductive coils, and electromagnetic devices.
